Documentation

Get Started

Installation

  1. Download the software from https://www.anthony-cardinale.fr/_public/unity-tools/AdvancedHUB/
  2. The software is compatible with Windows 10+ 64-bit systems
  3. Extract the ZIP file to a location of your choice
  4. Create a desktop shortcut to AdvancedUnityHUB.exe for easy access
  5. Launch the application from the shortcut or directly from the extraction folder

Upon first launch, you'll be guided through the initial setup process.

Initial Setup

1

Configure default settings

Set up the default directories for:

  • Unity installations location (where different Unity versions are installed)
  • Default projects location (where new Unity projects will be created)

These settings can be accessed anytime from the settings menu.

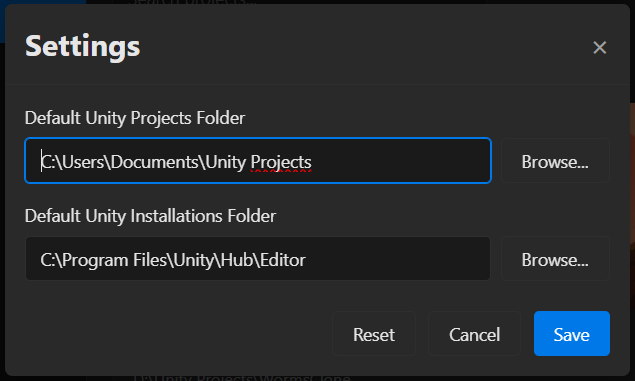

Configuring default settings
2

Locate Unity installations

Advanced Unity HUB needs to know which Unity versions are available on your system:

  • Go to the "Installs" tab
  • Click "Locate Unity Version"
  • Browse to locate an existing Unity.exe installation

All added Unity installations will appear in the versions list and become available for project creation.

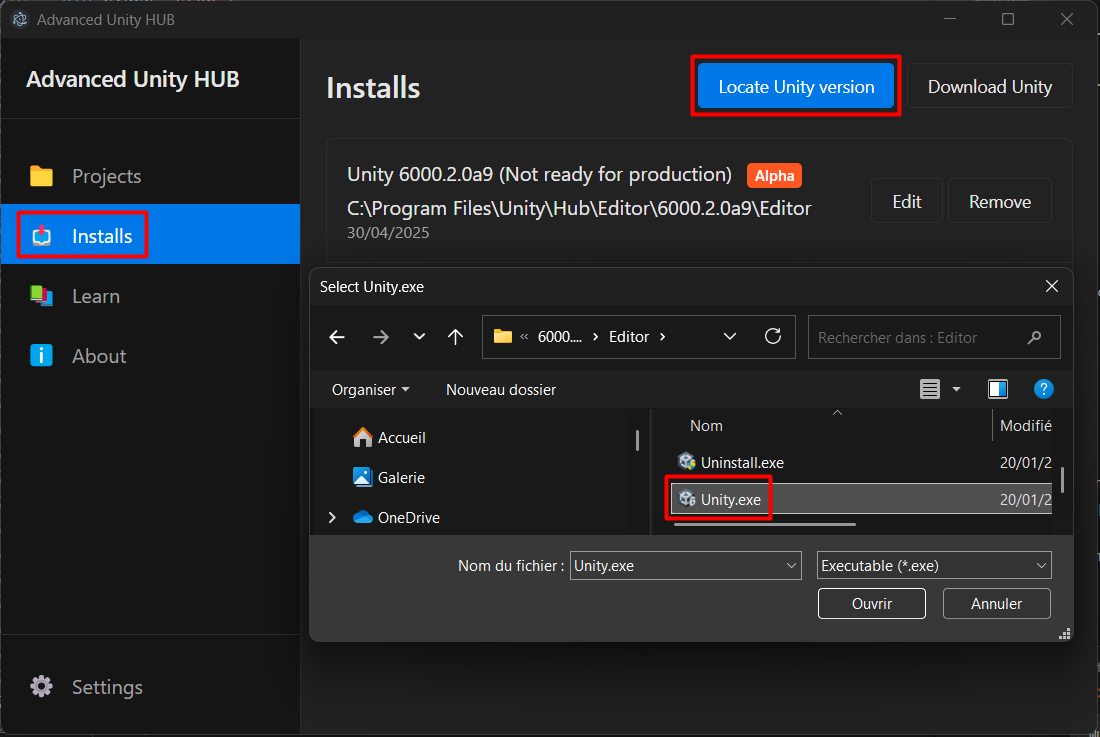

Locating Unity installations
3

Add existing Unity projects

To add existing Unity projects to the hub:

  • Go to the "Projects" tab
  • Click "Add Project"
  • Browse to the folder containing your Unity project
  • Select the project folder and click "Select"

Projects will me added to the list.

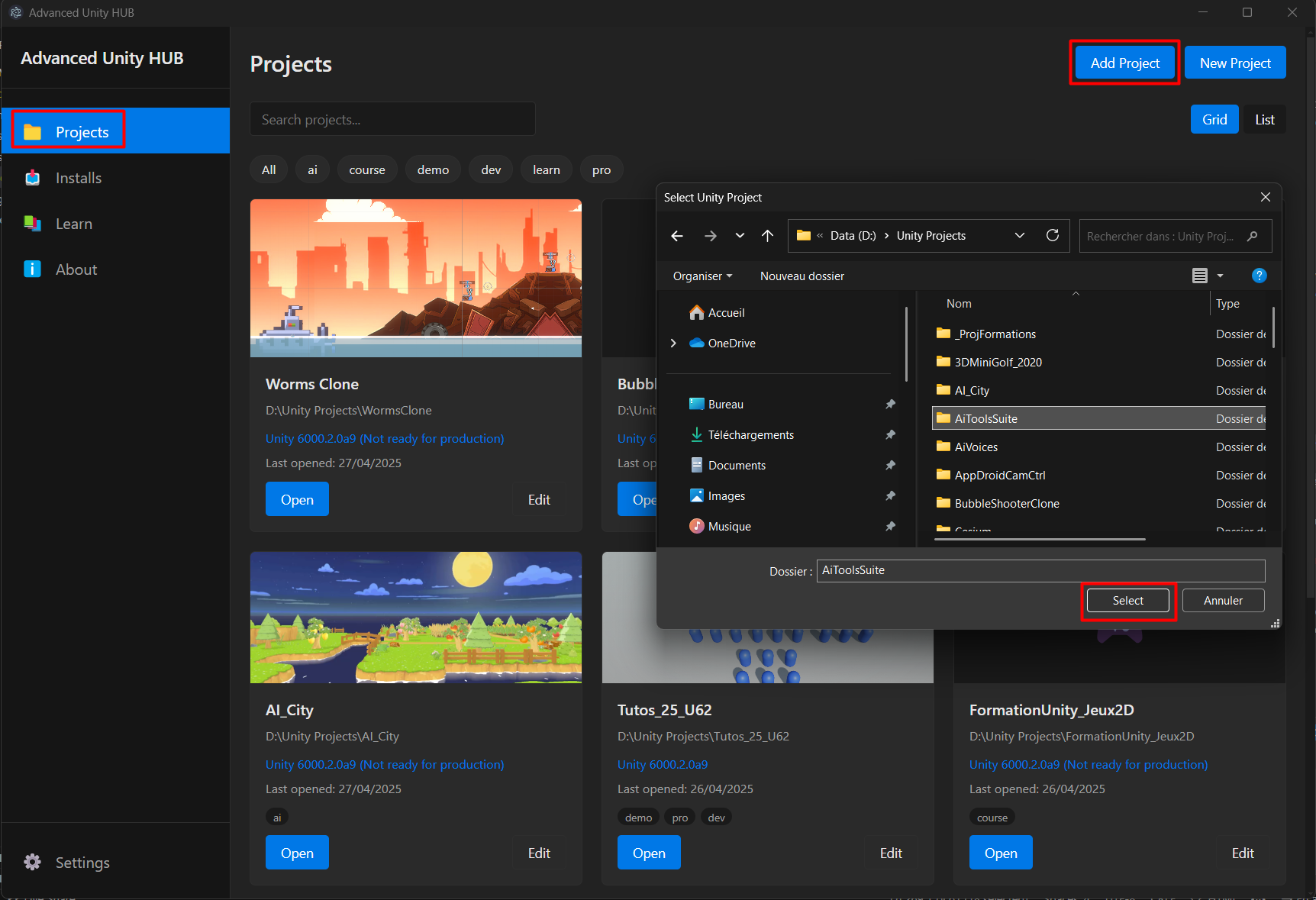

Adding existing Unity projects

Creating a New Project

To create a new Unity project using Advanced Unity HUB:

  1. Click "New Project" on the main interface
  2. Select a Unity version from the dropdown menu
  3. Enter a project name
  4. Choose a location (or use the default projects location)
  5. Select a template (2D, 3D, HDRP, URP, etc.)
  6. Configure additional project settings as needed
  7. Optionally, add tools and scripts to be included in the project:
    • Select from available tools in the "Tools" section
    • Tools will be automatically integrated into your project upon creation
  8. Click "Create" to finalize

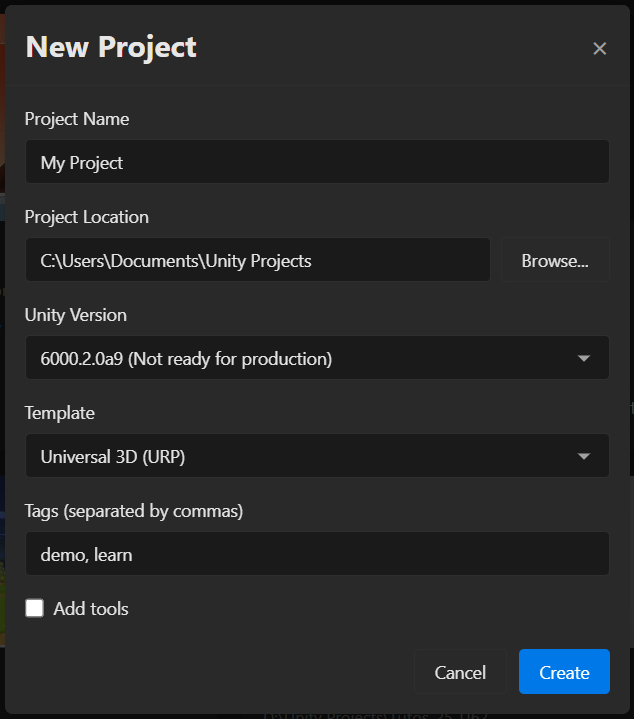

Creating a new Unity project

You can use the tag system to enhance your workflow and easily organize your projects.

4

Add tools to a project

Learn more about available tools:
